Name: AAC Block Manufacturing Unit
Brand: Ruigang
SKU: 163101723

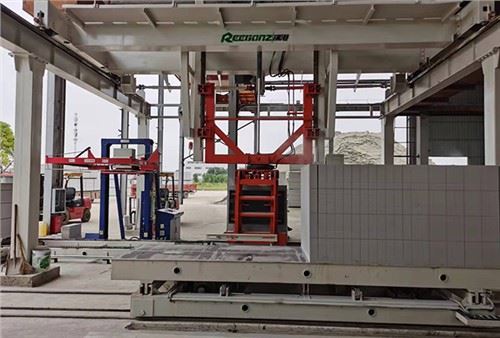

RUIGANG AAC Block Manufacturing Unit is used for AAC production line which usually has two kinds of production process.It includes fly ash AAC block and sand AAC block, and its technologies are at a high level in the industry. The main raw materials of AAC block are tailings sand or fly ash, lime and cement, aluminum paste is regarded as aerating agent.The process of AAC production line is a new green and environment-friendly self insulation wall material formed by grinding raw materials, batching and mixing, pouring , cutting and autoclaving. AAC block has the characteristics of light weight, high strength, durability, thermal insulation, sound insulation, fire prevention, impermeability and good anchoring performance. It has the advantages of convenient construction, strong processability, reducing the comprehensive cost of buildings and increasing the use area of buildings. It has been widely used in industrial and civil buildings. The application and promotion of AAC block is also a new national project.

The condition of AAC Block process

Product weight is according to 600kg/m3 to control.

Annual capacity 50,000M3/100,000M3/200,000M3/300,000M3/500,000M3

Raw material proportion: cement 6.5%, raw lime 23%, flyash 68%, gypsum 3%, aluminum paste powder 350g/M3.

Water and material rate 0.631

One mould AAC Block 3.456M3/4.32M3

Casting slurry cycle time 4-5 minutes, cut cycle time 2 minutes.

Casting slurry temperature 38-40 degree

Green cake quiet stop time is 1.5-2.5 hours, temperature 40-80 degree, after quiet stop,the cake strength is 0.15-0.18Mpa

Steam autoclaving cycle time, come in and out autoclave about 0.5hour, steam autoclaving cycle time about is 6 hours/1.6Mpa, total 6.5 hours.

Raw material proportion (sand and fly ash) for AAC Block

Raw material	Proportion
Sand	55-65%
Cement	10-20%
Lime	20-30%
Gypsum	2-3%
Aluminum powder paste(600kg/m3)	0.08%
Water & material rate	0.65-0.75%

Sand
Chemical characteristics
SiO₂, %	Al₂O₃, %	Fe₂O₃, %	CaO, %	MgO, %	Na₂O, %	K₂O, %	SO₃, %	LOSSI
77.45	12.49	1.61	1.37	0.75	0.73	3.69	0.01	1.48
Physical characteristics
Bulk density, kg/m3	Density, g/cm3	Clay content, %	Fineness modulus of sand, %	Organic compound content, %	Moisture, %	gravel content, %
Bulk density, kg/m3	Density, g/cm3	Clay content, %	Fineness modulus of sand, %	Organic compound content, %	Moisture, %	5 mm-10 mm	>10 mm
1284	2.63	0.7	1.59	0.0	2.29	0.1	0.0
Grading of sand:
Percentage passing for sieve
2.5 mm	1.25 mm	0.63 mm	0.315 mm	0.14 mm	<0.14 mm
1.5	2.4	7.3	55.1	99.2	100
Lime
Calcium and magnesium oxides, %	Carbon dioxide (as-received basis), %	Loss I, %	Blanking time (60 ° C), minute	SiO₂, %	Al₂O₃+ Fe₂O₃,
75. 0	2.0	7. 0	7-15	4.1	2.14
Cement
Name	Blaine, m²/kg	Density, g/cm³	Bulk density, kg/m³	Consistency	Setting time, minute		Compressive strength, MPa
Name	Blaine, m²/kg	Density, g/cm³	Bulk density, kg/m³	Consistency	Initial	Final	3 days	28 days
OPC 42,5 Portland cement	303.1	3.09	1150	27.6	186	254	22.1	44.6

The company is committed to providing customers with Ruigang brand turnkey AAC production line, with an annual production capacity of 20 AAC production lines. It is a company that can undertake design, R & D, manufacturing and project management (EP \ EPC) for the AAC production line. It is a high-tech enterprise of building materials and equipment and a solution supplier of the whole wall material factory integrating operation and management consulting.

In 2008, Zhejiang Ruigang Machinery Co., Ltd. independently developed the first fully automatic packing line of AAC production line in China, and achieved a good market reputation. In 2020, the company developed the first production line with the fastest production speed in the world.

Up to now, the AAC Block Manufacturing Unit has been distributed all over the country,while leading the development of domestic industry, the company has been actively exploring the international market. At present, our AAC Block Manufacturing Unit has covered Southeast Asia, the Middle East and other places. In recent years, with the vigorous development of prefabricated buildings, Ruigang's leading position in autoclaved aerated concrete industry has become more and more prominent. Ruigang is committed to providing intelligent whole AAC production line for the industry. With the successful delivery of projects at domestic and abroad, Ruigang has gained a series of market reputation with its solid technology, excellent quality and considerate service. "Ruigang" brand has gradually become synonymous with high-end products in the industry, and has become a powerful promoter of China's autoclaved aerated concrete industry to the world!
